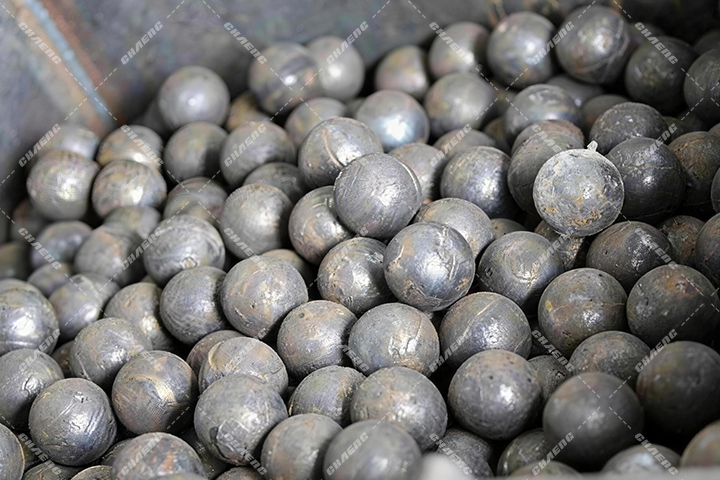

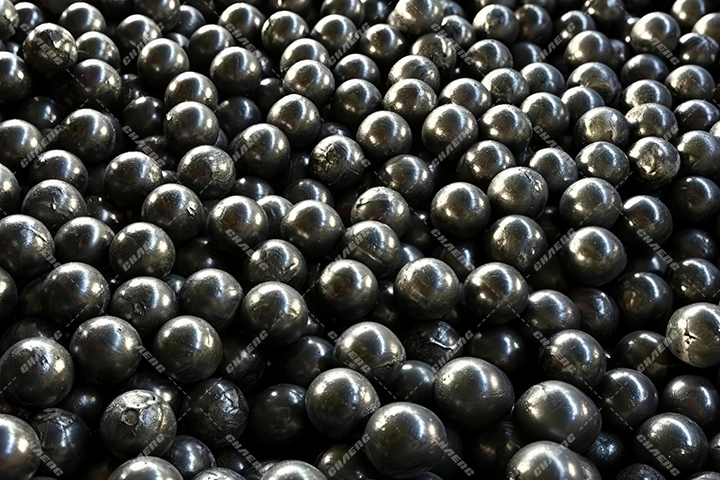

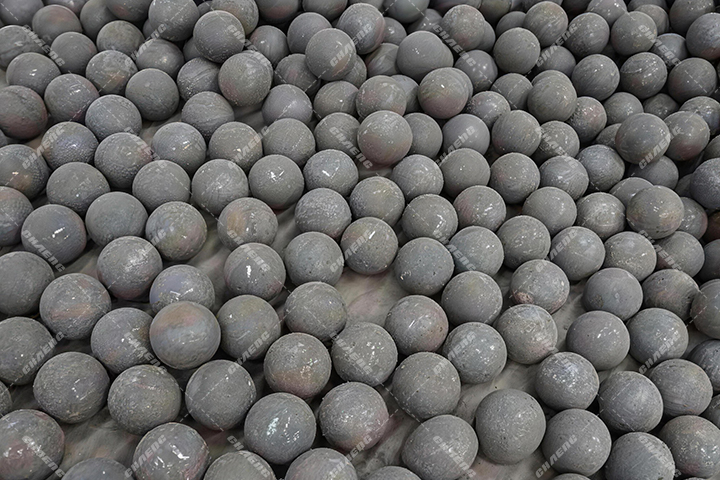

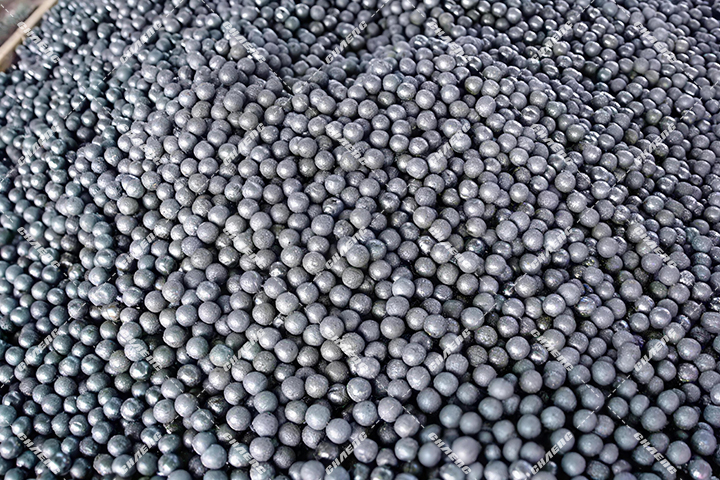

Wear-resistant steel ball is a kind of crushing medium used in ball mill. It is used for material grinding inside the mill.
High chromium alloy steel ball of ball mill is widely used in powder manufacture and ultra-fine processing for cement building materials, metal mining, coal slurry thermal power, chemical engineering, ceramic coating, light industry paper, magnetic materials and other industries. The surface hardness can reach 65HRC, with average hardness gradient distribution, low abrasion, good toughness, and the quality of finished product is as good as GB/t17445-2009 standard. There will be No deformed problems occurring since the first time to use. It can improve the cement Blaine Test and ore concentrates recovery rate, improve the production capacity of grinding machine, prolong the working life of the mill liner, and reduce the production cost.
1. Constant temperature pouring to ensure the quality of products without sand, porosity and collapse;
2. Advanced heat treatment technology to improve the internal structure of the ball, reduce the internal stress of the ball, ensure the crushing rate, and further improve the performance after quenching;
3. High quality materials, good wear resistance and long service life.
Photo: Xinjiang cement plant introduced cement ball mill and steel balls supplied by Great Wall machinery.
Photo: Henan cement plant purchased steel ball supplied by Great Wall Machinery
| Specification (mm) | Unit weight (kg) | Quantity (pc/t) | Specification (mm) | Unit weight (kg) | Quantity (pc/t) | |
|---|---|---|---|---|---|---|
| Φ30 | 0.11 | 9091 | Φ90 | 2.90 | 345 | |
| Φ40 | 0.25 | 3891 | Φ100 | 4.00 | 250 | |
| Φ50 | 0.50 | 2000 | Φ110 | 5.30 | 188 | |
| Φ60 | 0.86 | 1153 | Φ120 | 6.80 | 147 | |
| Φ70 | 1.37 | 729 | Φ130 | 7.70 | 129 | |
| Φ80 | 2.05 | 487 | Φ140 | 8.74 | 114 |

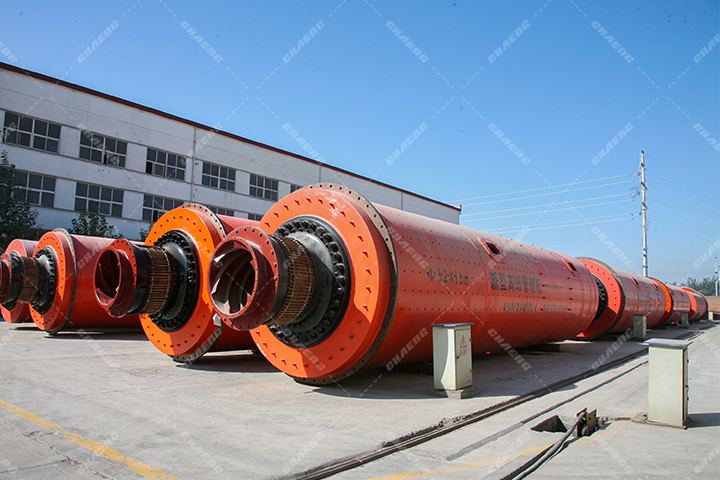

Founded in 1958 and located in Xinxiang, Henan province, CHAENG has 60-year experience in equipment manufacturing with an area of 330,000 m2 and 1 billion RMB of annual production value. The company is specialized in manufacturing all kinds of ball mills, rotary kilns, vertical mills, large steel castings. And we can undertake the EPC projects of cement production line, quick lime production line, blast furnace slag/ steel slag/ nickel slag grinding plants. Its products are sold to more than 50 countries and regions in Southeast Asia, Central Asia, South Asia, North America, South America and Europe.
Our long-term strategic partners: Arcelor Mittal, Tata Group, Pohang Iron and Steel Company, Germany CCE, Japan Chiba , Shanghai Baosteel，Voestalpine and ASGT, etc.
Capacity : 200-10000t/d
Motor power : 1000-5000kw
Finished fineness : 330-550m2/kg
Capacity : 25-195t/h
Feeding Granularity : ≤25mm
Main equipment : Roller presses + Ball mill/Vertical roller mill
Equipment : GRMS slag vertical mill
Grinding material : slag, waster slag, Blast furnace slag
Matching equipment : belt feeder + vibrating screen + slag vertical mill + hot stove + dust collector + finished product warehouse
