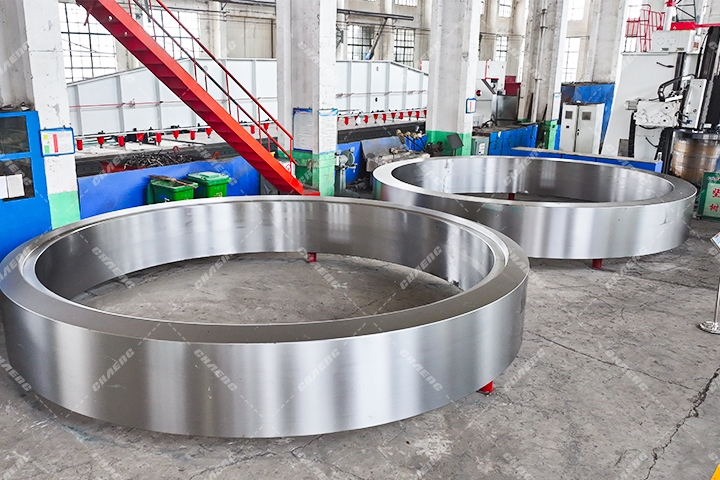

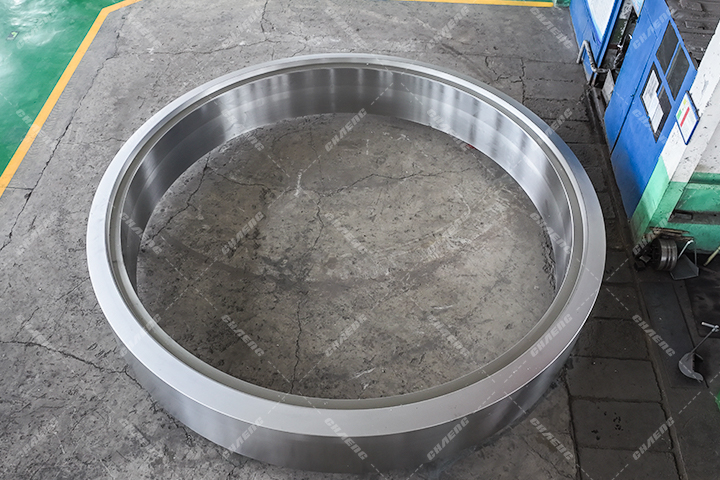

Kiln Tyre

Weight: 1-80Tons

Material: Steel ZG45, ZG42CrMo, etc

Application: cement, metallurgy, chemical, construction

Customizable: Yes, according to the drawing

Process introduction

Rotary kiln tyre is also called kiln rolling ring, rotary riding ring, which is the main part of rotary kiln. The function of the tyre is to transfer all the weight of the cylinder body to the supporting roller, and make the cylinder rotate smoothly on the roller, so the tyre should be powerful and durable enough. Meanwhile, it is the part to enhance radial stiffness of the rotary kiln shell, so it should be with excellent stiffness. CHAENG can produce all kinds of kiln tyre according to the drawings and sizes provided by customers.

According to the customer’s requirement, CHAENG chooses the appropriate wooden model for design and makes the CAE casting simulation before real casting. All the casting is made in strict accordance with the process of “wooden model—sand moulding—smelting & casting pouring—heat preservation—cleaning—heat treatment—rough finishing &fine finishing—package & delivery”, for high-quality tyre casting.

kiln tyre process

Product Advantages

1. High tensile strength and good durability

The Tyre of rotary kilns produced by the CHAENG is made of ZG45 and ZG42CrMo, which can guarantee its strength and toughness, and the function of support can be well performed.

2. It adopts advanced dual medium quenching process in the casting process, which has high adaptability

The kiln Tyre produced by CHAENG adopts the advanced double medium quenching process, which makes it with features of even casting, high quenching hardness and toughness. This makes the Kiln Tyre has good wear resistance and can be adapted to all kinds of bad working environment.

Projects

The Kiln Tyre, manufactured by CHAENG, has been ordered many times by famous overseas enterprises from Italy, Turkey, Chicago, etc.

kiln tyre.jpg

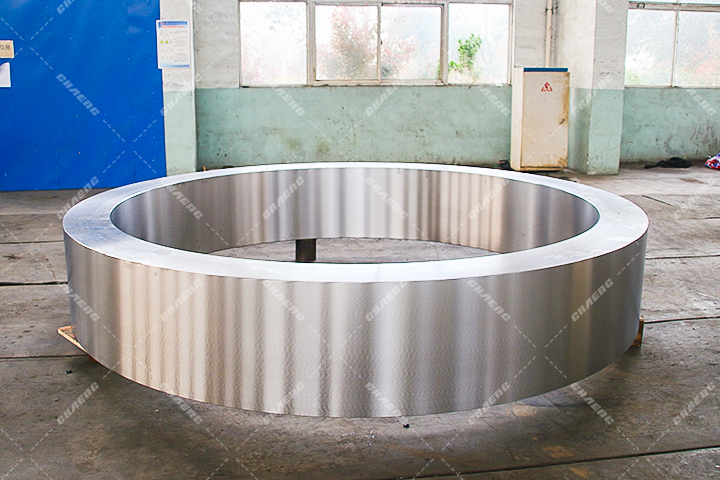

Kiln Tyre ready to deliver to Tajikistan



Service & Support

1. It has its own large casting foundry, which is very few in the same industry




CHAENG has its own large casting base and employs the top talents of casting technology to serve as the senior manager and its technical team. Now, the CHAENG casting base already has the comprehensive ability to provide users with a series of services from semi-finished products casting to finished products and a complete solution to the key assembly parts.

2. GB Level 2 inspection standard to ensure the spare parts are qualified

The particular process solution can be made according to the different needs of customers. and each casting section will be strictly controlled. To make sure every product is 360 ° Nondestructive Flaw Test before delivery and no defective products leave the factory.

The advanced technology and meticulous casting process ensure the quality of the castings, thereby making the first maintenance time of the main spare parts 2-3 months later than that of the others.
